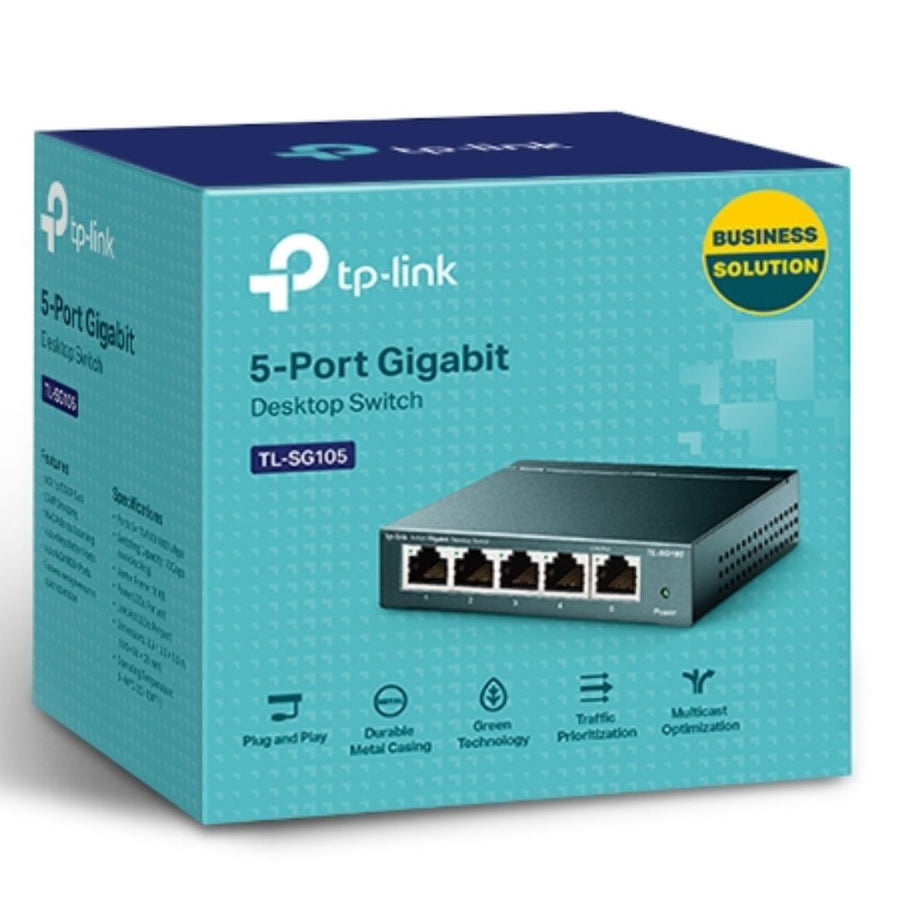

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case
5-Port 10/100/1000Mbps Desktop Switch
5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) (100 x 98 x 25 mm)
Max Power Consumption 2.3 W (220 V/ 50 Hz)
Max Heat Dissipation 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.
TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless
Regular price
$39.00
Sale
$35.75
