Technical Data Mounting type M6 Screw or Adhesive Enclosure material PC/PC+ABS UV resistant ✓ Cable length 3000 mm Weight 450 g Operating temperature -40 °C ~ +80 °C Operating humidity ≤ 90 % Ingress Protection Rating IP67 RoHS compliant ✓ 5G MOBILE MIMO ANTENNA Frequency range 600 ~ 960, 1427 ~ 2700, 3300 ~ 4200, 4400 ~ 5000 MHz Polarisation Linear Radiation pattern type Omni-directional Gain ≤ 4 dBi V.S.W.R ≤ 2.5 Impedance 50 Ω Connector type and count 4 x SMA Male Cable type 4 x LMR100 GNSS ANTENNA Frequency range 1559 ~ 1610, 1164 ~ 1189 MHz Polarisation RHCP Radiation pattern type Directional Gain ≤ 2 dBi LNA Gain 17 ± 2 dB LNA noise figure ≤ 2 dB V.S.W.R ≤ 2 Impedance 50 Ω Supply voltage 3 ~ 5 VDC Current consumption 15 mA Connector type and count 1 x SMA Male Cable type 1 x LMR100
- Brand: Teltonika
- Category: IoT / LTE
- Subcategory: Teltonika Accessories
- SKU: NHT-PR1KCN40
Product Specifications
| Manufacturer SKU | PR1KCN40 |
|---|---|
| Category Code | IO01 |
| Length | 240 |
| Width | 140 |
| Height | 80 |
| Weight | 0.76 |
| Warranty | 24 |
| Barcode | 4779051847341 |
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

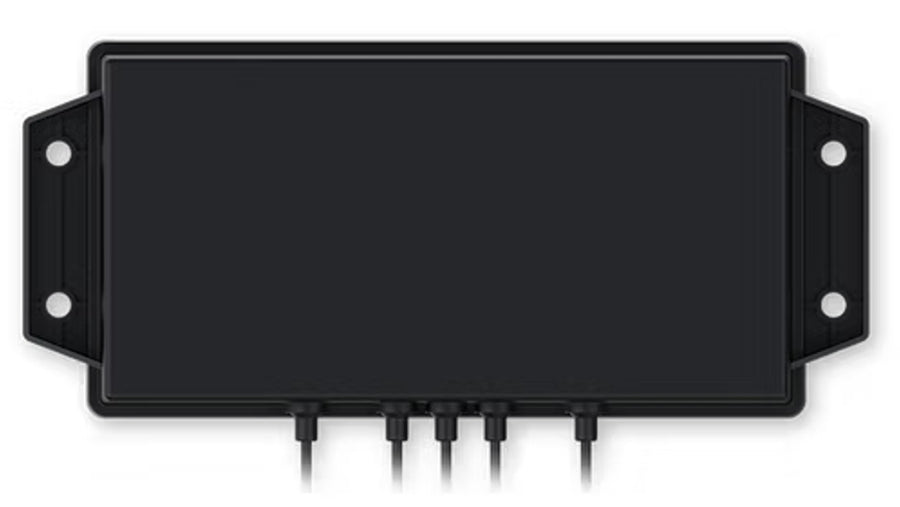

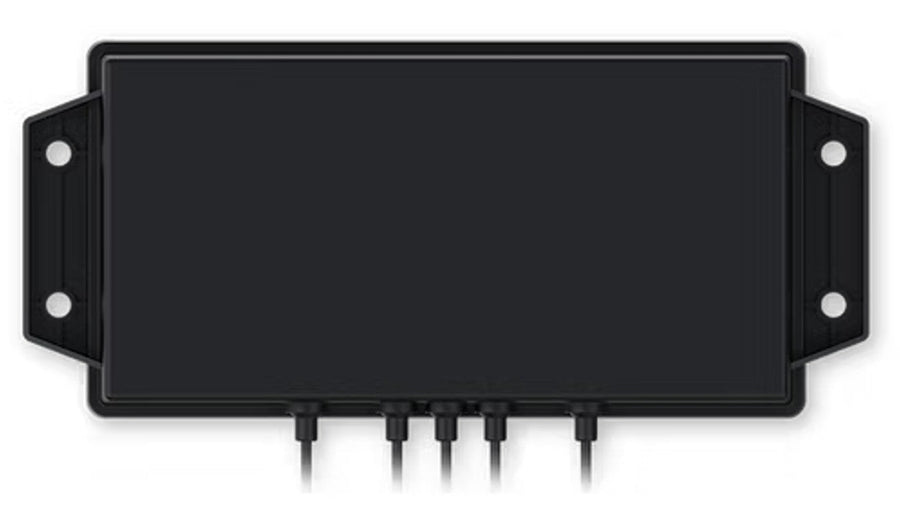

Teltonika 5G COMBO MOBILE/GNSS SMA ANTENNA
