- PCIe 3.0 x8 host interface, low profile card
- 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9440 adapter family
- Cacheless (not upgradeable)
- Connectivity for up to 8 internal SAS or SATA drives, depending on the adapter selected
- Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
- Support for intermixing of 12 Gbps and 6 Gbps drives.
- Support for RAID 0, 1, 10, 5, and 50 standard
- Support for JBOD (non-RAID) drive state
- Support for up to 63 physical drives with SAS expander (where supported)
- Support for up to 32 virtual drives
- Support for logical drive sizes greater than 2 TB.
- Fixed 64 KB stripe size
- Supports 512e, 512n and 4K sector formatted drives
- Supports UNMAP command for SAS SSDs (JBOD and RAID volumes)
- Supports TRIM command for SATA SSDs (JBOD)
- Compliant with Disk Data Format (DDF) configuration on disk (CoD).
- S.M.A.R.T. support.
- Configuration through
- XClarity Provisioning Manager UEFI interface
- XClarity Controller web interface
- XClarity Administrator Configuration Patterns
- StorCLI command-line interface
- LSI Storage Authority (LSA) GUI interface
- UEFI Human Interface Infrastructure (HII)
Note: CacheCade is not supported by this adapter
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

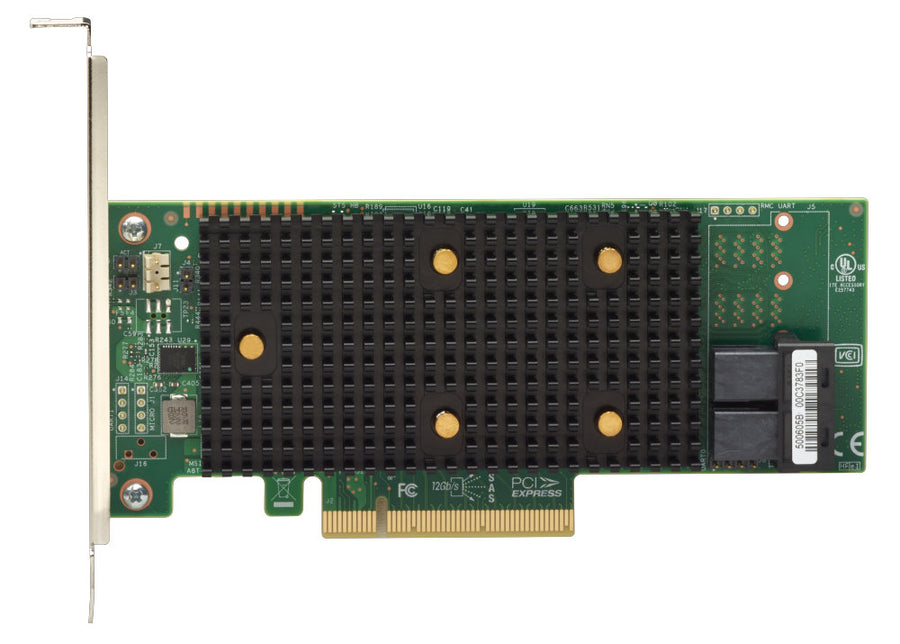

LENOVO ThinkSystem RAID 530-8i PCIe 12GB Adapter for SR250/SR530/SR550/SR570/SR590/SR630/SR650/SR635/SR645/SR655/SR665/ST50/ST250/ST550
Regular price
$645.00
Sale
$686.40
