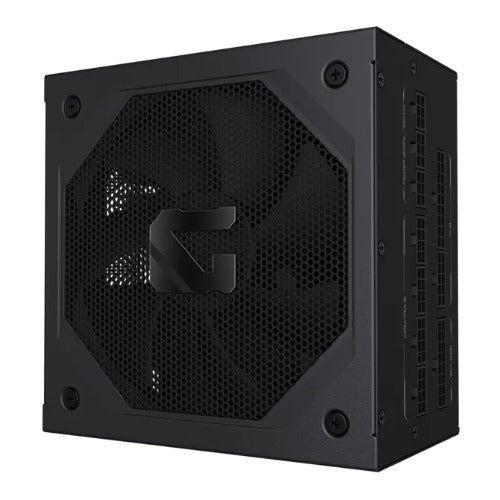

GIGABYTE GAMING 750GM PG5 750W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF 13.8-35.8dBA FM Model GP-GME750GM PG5 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac Input Current 10-5A Input Frequency 50-60 Hz Output Capacity 750W Dimensions 150 x 150 x 86mm Fan Type 135mm FDB Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP Power Good Signal 100-150ms Hold Up Time >17ms(80% load) Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 Noise Level: 13.8 ~ 35.8 dBA
- Brand: Gigabyte
- Category: Power Supplies
- Subcategory: ATX/PS2
- SKU: CFGP-GME750GMPG5
Product Specifications
| Manufacturer SKU | GP-GME750GM PG5/PSU |
|---|---|
| Category Code | PS |
| Length | 470 |
| Width | 202 |
| Height | 146 |
| Weight | 2.42 |
| Warranty | 36 |
| Barcode | 4719331557195 |
