Shuttle’s latest XPC nano NC40U series houses the performance hybrid architecture of Intel® 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel® Iris® Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5' hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel® Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference. FORM FACTOR Shuttle 0.85L Form Factor PROCESSOR Intel® 12th Gen Celeron 7305 15W CPU MEMORY 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4, up to 3200Mhz VIDEO OUTPUT Intel® Iris Xe Graphics AUDIO C-Media CM6542 ETHERNET Built in Intel I219 support 10/100/1000Mbs STORAGE INTERFACE Support SATA 6.0Gb/s bandwidth FRONT PANEL (1) Power button (1) Power LED (1) HDD LED (2) USB 3.2 Gen 1 Type A (1)USB 3.2 Gen 1 Type C (w/DP) BACK PANEL (1) HDMI (1) DisplayPort (2) USB 3.2 gen1 (2) USB 3.2 gen2 (1) RJ45 (1) DC-in Jack (1) Kensington Lock DRIVE BAYS 2.5' 15mm SATA HDD / SSD DIMENSIONS 142(L) x 142(W) x 42(H) mm POWER 65 Watts (19V/3.42A) ACCESSORIES Quick guide DVD driver VESA mount Foot Stand Adapter and power cord screw pack EXPANSION SLOT M.2 2230 E key M.2 2280 M key(w/PCIe Gen3 x 4, SATA 6 Gb/s) M.2 2280 M key(w/PCIe Gen4 x 4) OS SUPPORT Windows 11 Linux OPERATING TEMPERATURE 0℃~50℃
- Brand: Shuttle
- Category: Systems - NUC/SFF/AIO
- Subcategory: Kiosk
- SKU: SYS-NC40U
Product Specifications
| Manufacturer SKU | NC40U |
|---|---|
| Category Code | SY |
| Length | 258 |
| Width | 142 |
| Height | 248 |
| Weight | 1.66 |
| Warranty | 36 |
| Barcode | 887993005904 |
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

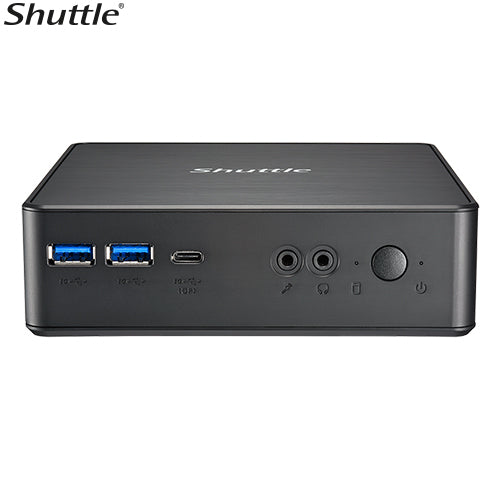

Shuttle NC40U Slim Mini PC, 1L Barebone - Celeron 7305, HDMI, DP, VGA, RJ45, LAN, 2xDDR4, 2.5' HDD/SSD, VESA mount
