TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ • 5× 10/100/1000 Mbps RJ45 ports • With four PoE+ ports, transfers data and power on one single cable • Works with IEEE 802.3af/at compliant PDs • 802.1p/DSCP QoS enable smooth latency-sensitive traffic • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 40 W for all PoE ports* • Plug and play, no configuration and installation required HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation • 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping Transfer Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents • TL-SG1005LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
- Brand: TP-LINK
- Category: Network - Consumer
- Subcategory: Network Switches
- SKU: NWTL-SG1005LP
Product Specifications
| Manufacturer SKU | TL-SG1005LP |
|---|---|
| Category Code | NW |
| Length | 198 |
| Width | 134 |
| Height | 120 |
| Weight | 0.74 |
| Warranty | 60 |
| Barcode | 6935364052720 |
Alternative Replacements
- NWTL-SG1005D
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

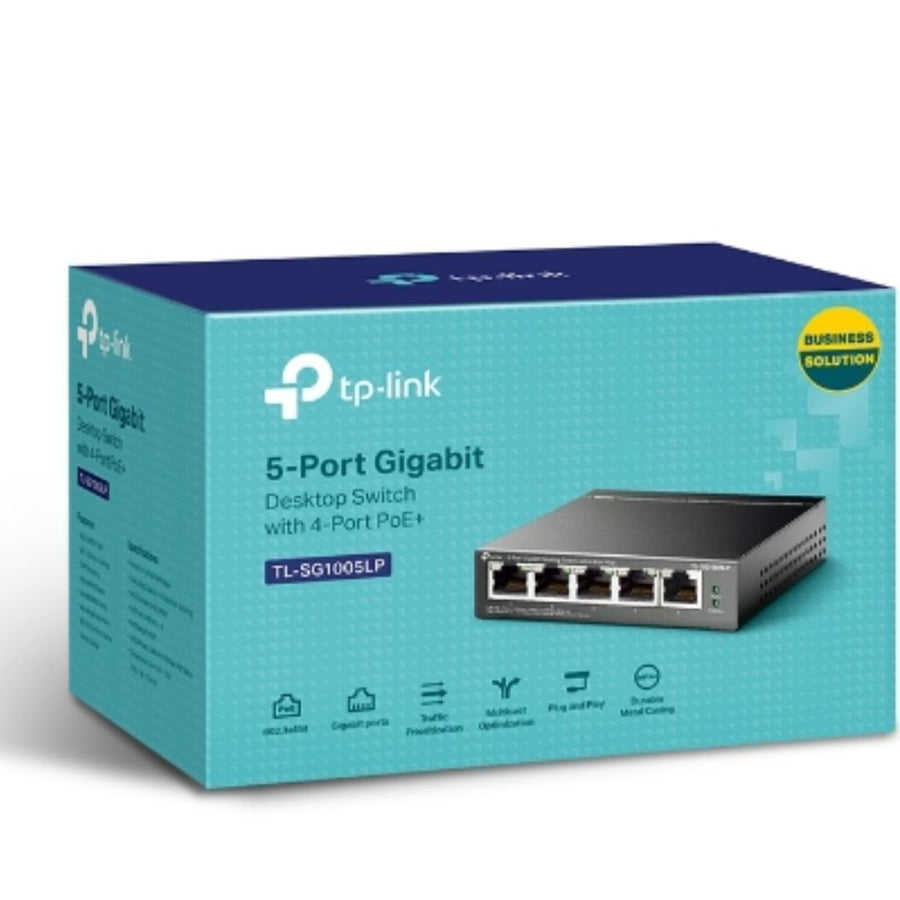

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port
Regular price
$79.99
