TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W 5 10/100/1000Mbps RJ45 ports With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 56W for all PoE ports Requires no configuration and installation HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.29 W (220/50 Hz. no PD connected) • 74.24 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 14.63 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
- Brand: TP-LINK
- Category: Network - Consumer
- Subcategory: Network Switches
- SKU: NWTL-SG1005P
Product Specifications
| Manufacturer SKU | TL-SG1005P |
|---|---|
| Category Code | NW |
| Length | 136 |
| Width | 198 |
| Height | 122 |
| Weight | 0.78 |
| Warranty | 60 |
| Barcode | 1210002616607 |
Alternative Replacements
- NWTL-SG1008P
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

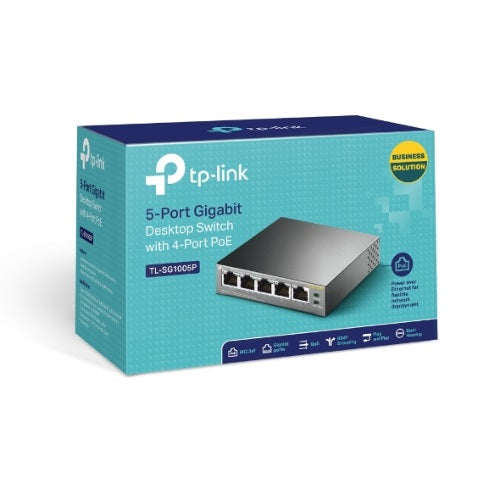

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case
Regular price
$89.99
Sale
