•Local and Remote Units connect at distances up to 300 m using Cat 5e cable
•Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
•Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
•Built-in ASIC for greater reliability and compatibility
•Auto Signal Compensation (ASC)
•RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
•Sun/Mac keyboard support and emulation*
•Audio Enabled - supports stereo speakers and microphone
•USB overcurrent detection and prevention
•Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
•Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
•High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
•Superior Audio - no loss in audio quality at 300 m
•Spports Wide Screen formats
•Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
•Hot pluggable
•Rack mountable
•Easy to install - no software required - connecting cables to the devices is all it takes
*1. PC keyboard combinations emulate Sun/Mac keyboards
*2. Sun/Mac keyboards only work with their own computers
Compatible Cables: 2L-5301U, 2L-5302U, 2L-5303U, 2L-5304U, 2L-5305U, 2A-130G
Shipping Information
We believe in clear and straightforward service, and that starts with how your order is delivered. Before completing your purchase, we encourage you to review our shipping information so you know exactly what to expect.
Our Shipping Policy outlines order processing times, delivery methods, and what happens once your order has been dispatched.
This policy forms part of your purchase agreement and is intended to provide transparency and confidence when placing your order.
Returns & Exchanges Policy
We understand that sometimes a return or exchange may be necessary. To ensure the process is handled fairly and efficiently, we ask that all customers review our policy before submitting a request.
Our Returns & Exchanges Policy explains eligibility requirements, timeframes, and the steps involved in requesting a return or exchange.
Please note that this policy applies to all purchases and forms part of the terms and conditions of sale.

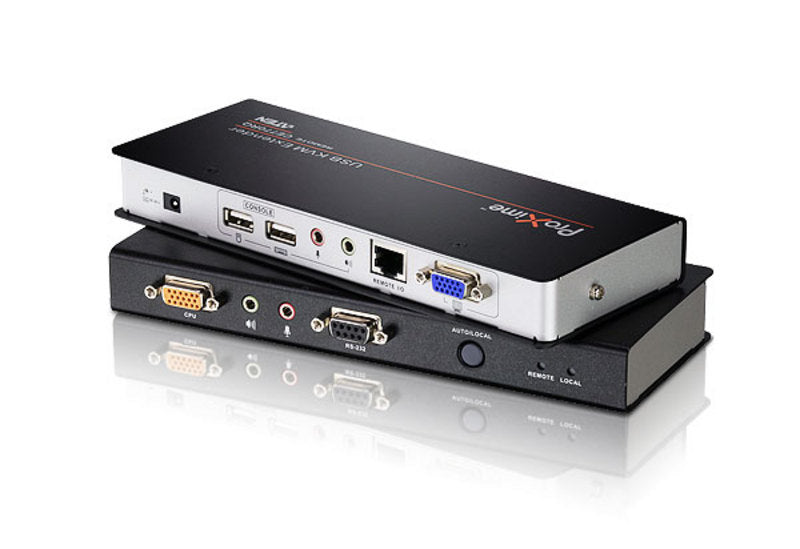

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m
